In-house IT staff can handle a single-office setup with a handful of lines. Multi-location businesses, though, usually benefit from a managed IT partner who can assess network readiness, provision hardware, and handle integrations without disrupting daily operations.
Get setup wrong and you'll know it fast: choppy calls, dropped connections, security gaps, and emergency calls that don't route correctly. This guide walks through planning, installing, and validating a VoIP system so you avoid those headaches.
Key Takeaways
- Assess needs, test your network, choose hardware, pick a provider, then configure and test
- A stable connection with 90-100 Kbps per direction per call is your top prerequisite
- Choose IP phones, softphones, or ATA-adapted analog phones based on budget
- E911 compliance and firewall security must be sorted before going live
- Testing and staff training prevent call quality issues after launch
Setup Guide for a VoIP Phone System

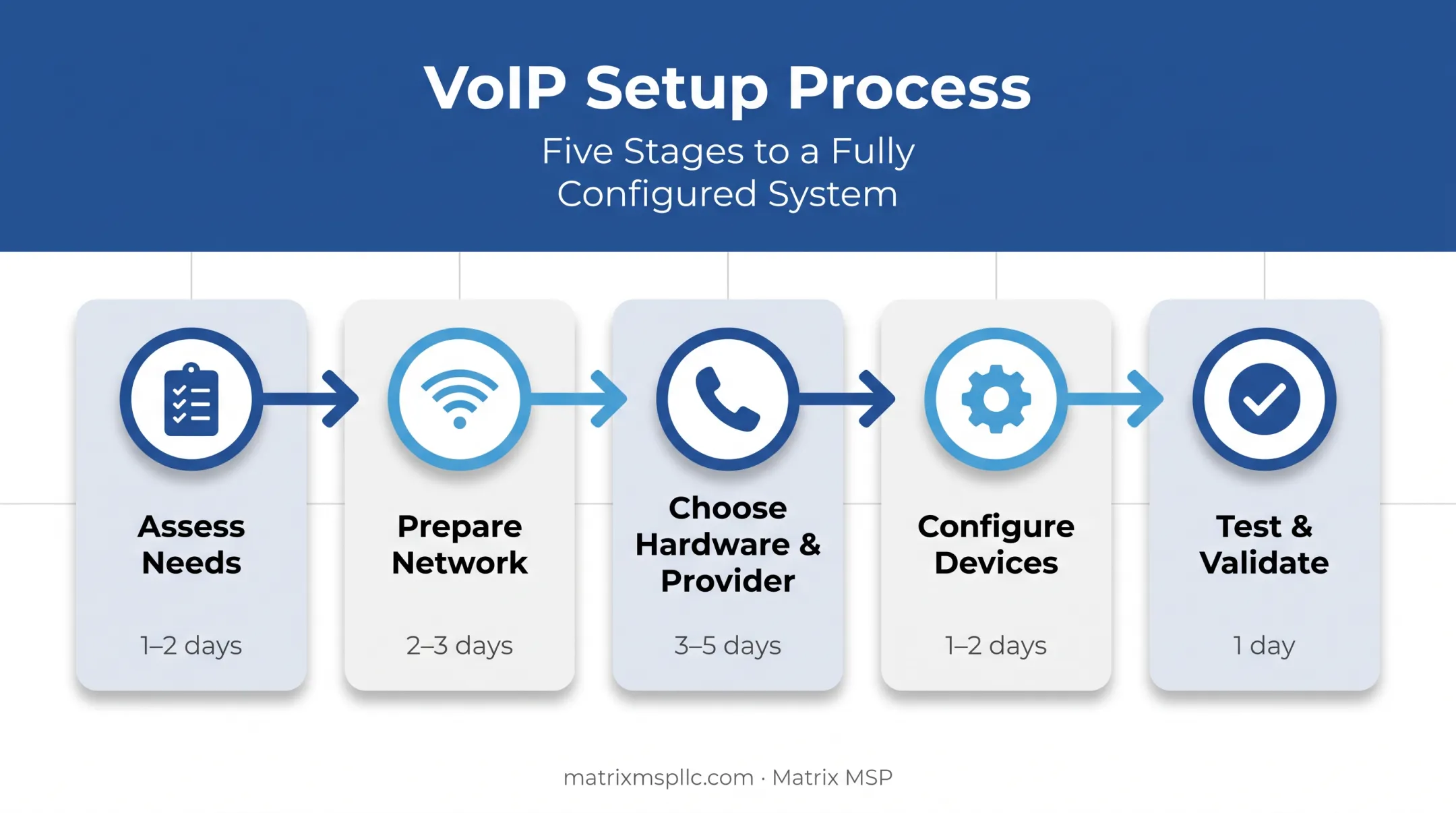

The process breaks into five stages:
- Assess needs
- Prepare the network
- Choose hardware and a provider
- Configure devices
- Test and validate
Most small business setups take a few hours to a few days. Larger deployments involving number porting or multi-site rollouts typically run 1-3 weeks, especially when coordinating with an internet service provider or IT partner.
Number porting alone can take 2-4 weeks with some providers, so build that into your timeline early rather than treating it as an afterthought.
Prerequisites and Network Readiness
Bandwidth Requirements
Plan for roughly 90-100 Kbps in each direction per simultaneous call. Most providers land in this range; the exact figure depends on codec choice, encryption, and packetization overhead.
Size your connection for concurrent calls, not total extensions. A 20-person office rarely has 20 people on the phone at once. Test your actual speeds during business hours, not late at night when traffic is light.
Compatibility and QoS
Before rollout, verify:
- Router and firewall support for Quality of Service (QoS) rules
- VLAN capability to separate voice traffic from general data
- Firewall prioritization of voice packets over bulk downloads
E911 Compliance
Network readiness also covers emergency calling rules. The FCC requires interconnected VoIP providers to support Enhanced 911, which automatically sends the caller's location and callback number to emergency responders. Customers can't opt out, and the registered address must stay current with your provider — especially after an office move or when you add lines at a new location.
Kari's Law also requires multi-line phone systems to allow direct 911 dialing (no "9" prefix) and to notify a designated on-site contact when a 911 call goes out.
Non-negotiable: Don't proceed with rollout if speed tests show high latency, jitter, or packet loss. Fix the network first. Businesses without reliable internet or backup power should build a failover plan before going live, not after the first outage.
Equipment and Provider Selection
What You Need
- High-speed internet connection with headroom for concurrent calls
- VoIP provider account with your chosen call plan
- At least one calling device — an IP phone, a softphone app, or an ATA-adapted analog phone
Optional extras that improve reliability:
- VoIP-optimized routers
- Power over Ethernet (PoE) switches for desk phones
- Quality headsets for staff who spend hours on calls

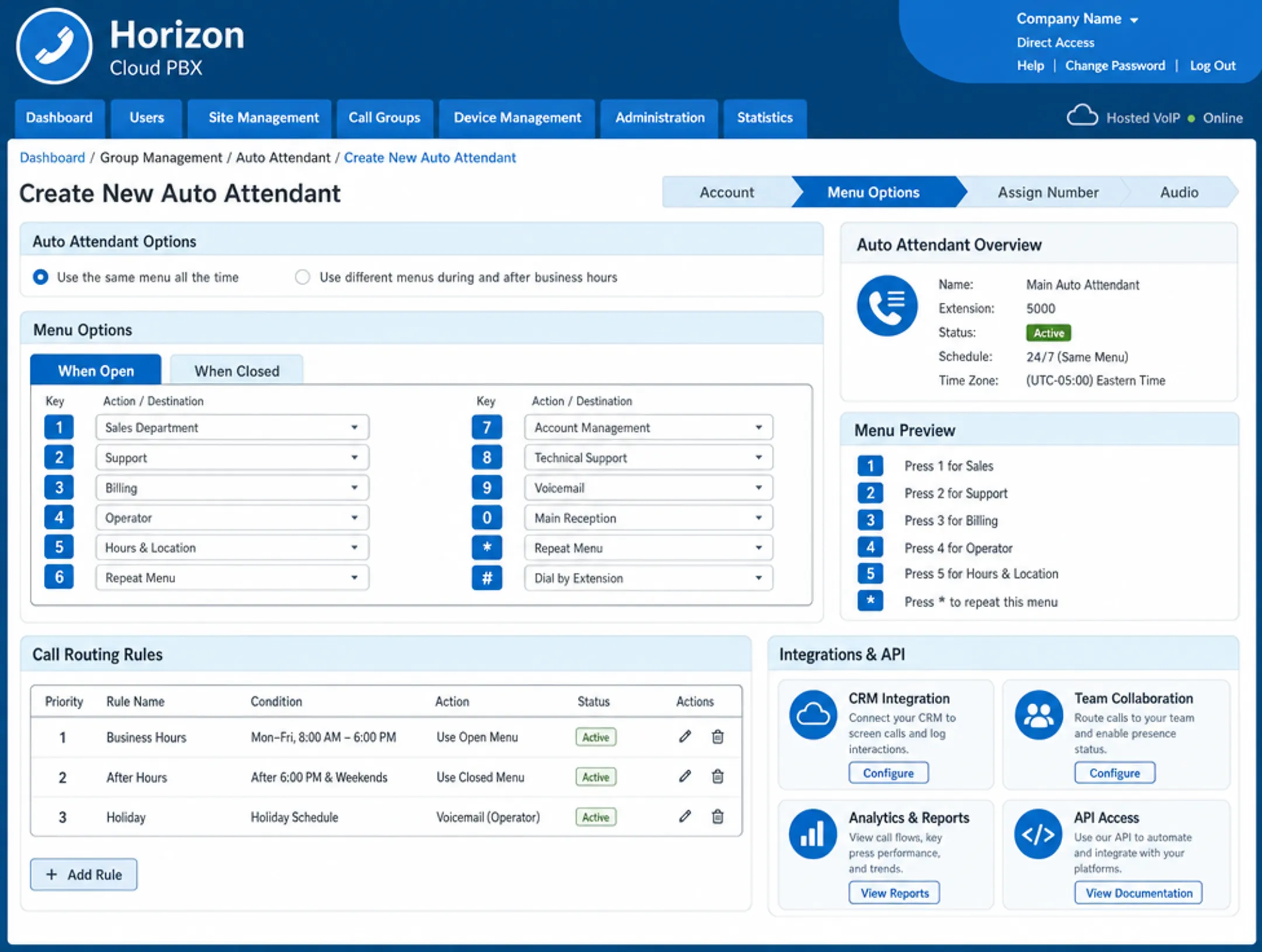

What to Look for in a Provider
Hosted VoIP platforms differ widely in features and integrations. Compare providers on:
- Call routing and auto-attendant/IVR menu flexibility
- CRM and collaboration tool integrations
- Encryption and call security standards
- Number porting support for your existing lines
- Feature depth — some hosted platforms bundle 150+ phone-system features into a single flat monthly fee per extension
Businesses without in-house IT resources often work with a managed IT provider like Matrix MSP to evaluate network readiness and match a hosted VoIP solution to their size and budget. With hosted VoIP, voice and data share your existing internet connection, so you skip on-site PBX hardware and can scale extensions up or down as headcount changes.
How to Set Up a VoIP Phone System (Step-by-Step)
Following this sequence prevents rework and avoids call quality surprises later.
- Test network readiness: Run a speed test, confirm QoS can be configured, and favor wired Ethernet over Wi-Fi wherever possible.
- Choose and provision hardware: Pick IP phones, softphones, or ATAs based on user count and budget.
- Sign up with a provider: Obtain new numbers or port existing ones, and build in extra time for number porting.
- Configure devices: Connect IP phones via Ethernet, install softphone apps on laptops and mobiles, or wire ATAs into existing analog handsets.
- Set up call routing: Build auto-attendant/IVR menus, voicemail boxes, and CRM or collaboration integrations so calls reach the right people.
Skipping steps, particularly network testing, is the most common reason businesses end up troubleshooting call quality after go-live instead of before.

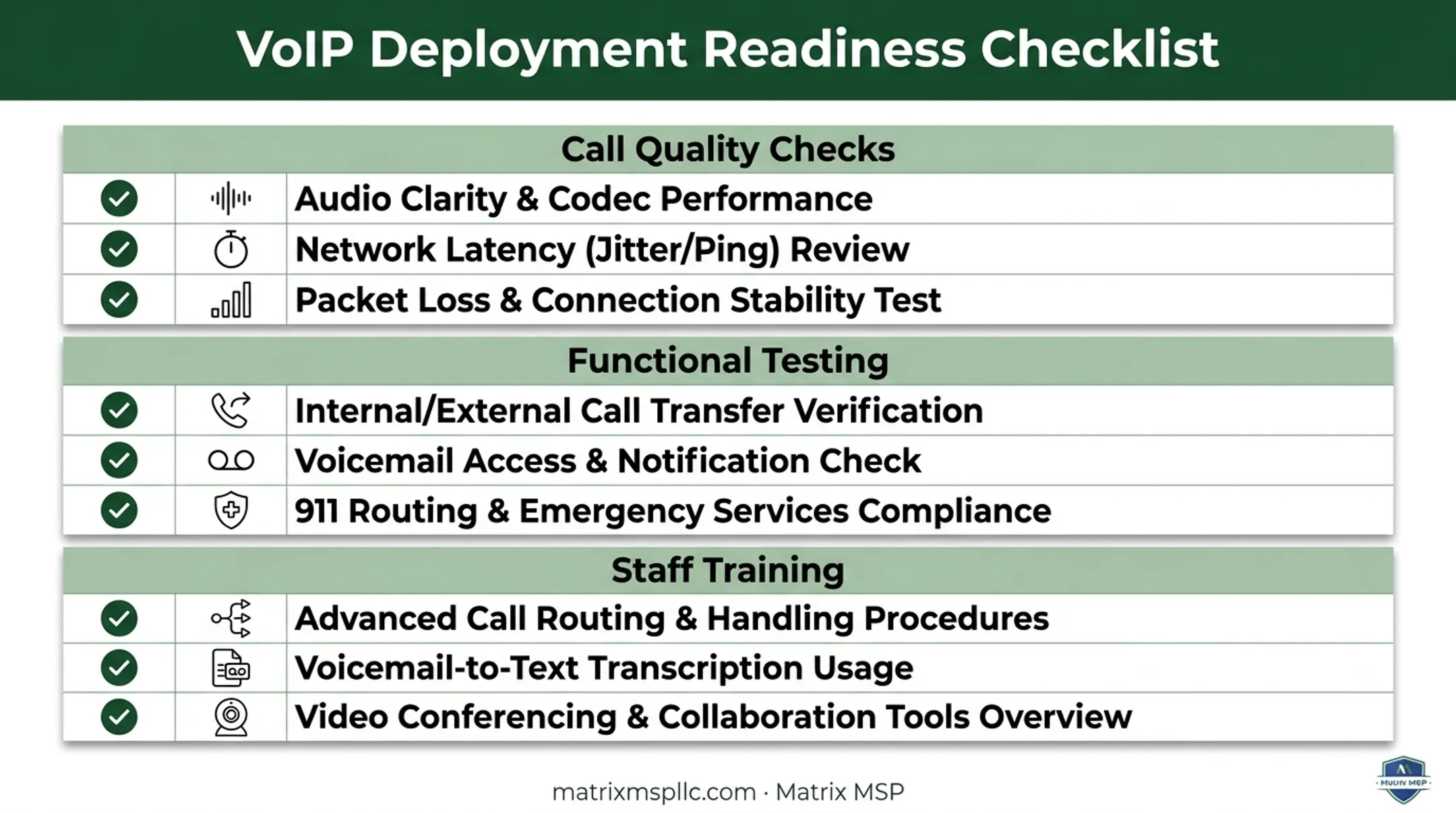

Testing, Validation, and Staff Training
Before flipping the switch for real customers, confirm the setup actually works.
Call Quality Checks
Make test calls during both normal hours and peak network usage. Listen for:
- Audio clarity and any breakup
- Latency (delays in conversation)
- Connection stability over a sustained call
Functional Testing
Verify these functions end to end before go-live:
- Call transfer between extensions and external numbers
- Voicemail-to-email delivery
- Test 911 routing with accurate location data
Skipping this step often means you only find problems when a real customer hits a dropped call—or when an emergency call fails to route.
Staff Training
Train staff before launch so the new system gets used on day one. Cover:
- Call routing and transfers
- Voicemail transcription
- Video conferencing
Slow adoption is one of the quickest ways to erode the ROI of a new phone system.
Common Setup Problems and Fixes
Even a solid VoIP install can hit snags after go-live. These are the issues that show up most often—and how to fix them fast.
Choppy Audio or Dropped Calls
Problem: Calls break up or disconnect mid-conversation.
Likely cause: Insufficient bandwidth, Wi-Fi interference, or no QoS configuration.
Fix: Switch to wired Ethernet, configure QoS to prioritize voice packets, or upgrade your internet plan.
Emergency Calls Not Routing Correctly
Problem: 911 calls don't deliver accurate location data to responders.
Likely cause: E911 address wasn't updated with the provider after an office move or new line addition.
Fix: Verify and update E911 registration with your provider right away. Don't wait for a real emergency to find the gap.
Firewall Blocking VoIP Traffic
Problem: Calls fail to connect, or phones won't register with the provider.
Likely cause: Firewall rules blocking SIP signaling ports (commonly UDP/TCP 5060, or 5061 for encrypted SIP).
Fix: Have IT or your provider open only the ports your PBX or provider docs list, and whitelist VoIP traffic. Avoid opening broad port ranges.
Conclusion
A properly planned and tested VoIP setup directly shapes call quality, customer experience, and business continuity. Skip network testing or E911 verification, and problems usually show up at the worst possible moment: during a customer call or an emergency.
Businesses without dedicated IT staff should consider consulting a managed IT and communications provider like Matrix MSP to handle network readiness, security, and a smooth rollout from planning through go-live.
Frequently Asked Questions
Can I use my old landline phone for VoIP?
Yes. An Analog Terminal Adapter (ATA) connects your existing analog phone to a VoIP network, converting the signal so it works over the internet instead of a traditional phone line.
What equipment do I need for VoIP?
You need high-speed internet, a VoIP provider account, and a calling device — an IP phone, a softphone app, or an ATA-adapted analog phone. Optional extras like PoE switches and headsets improve reliability.
What are PBX and PSTN?
A Private Branch Exchange (PBX) is your private phone system, routing calls between internal extensions and outside lines. The Public Switched Telephone Network (PSTN) is the traditional public network outside calls may connect to.
How much bandwidth do I need for VoIP?
Plan for roughly 90-100 Kbps in each direction per simultaneous call. Always test your actual network speeds during business hours rather than relying solely on this estimate.
Do I need a new phone number to switch to VoIP?
No. Most providers support porting your existing number, though you can also choose a new local, toll-free, or vanity number if you prefer.
Is VoIP reliable during a power or internet outage?
Not by default. Since VoIP depends on internet connectivity, you need a backup power source and a failover internet connection to maintain uptime during an outage.
