Dropped calls, robotic audio, and awkward silences during peak hours usually trace back to bandwidth contention, misconfigured firewalls, or missing Quality of Service (QoS) rules. Many businesses install a VoIP system, plug it in, and assume the job is done. Then the calls start dropping during the Monday morning rush.
For most companies, that's an annoyance. For healthcare practices, law firms, and financial organizations, it's a liability. A dropped call during a patient consultation or a client negotiation can mean compliance exposure, not just embarrassment.
This guide breaks down the architecture components that make VoIP reliable, the network foundation you need before deployment, how design changes by business type, and where a managed IT partner fits into the picture.
Key Takeaways
- Reliable VoIP depends on bandwidth planning, QoS, and firewall configuration as much as the phone system itself
- Core components (SBC, IP-PBX, SIP, codecs) each play a distinct role in call quality and security
- Wired Ethernet connections and voice VLANs reduce the jitter and packet loss that cause choppy calls
- Deployment architecture differs sharply for single offices, multi-location businesses, and hybrid teams
- Ongoing monitoring catches problems before staff start complaining about dropped calls

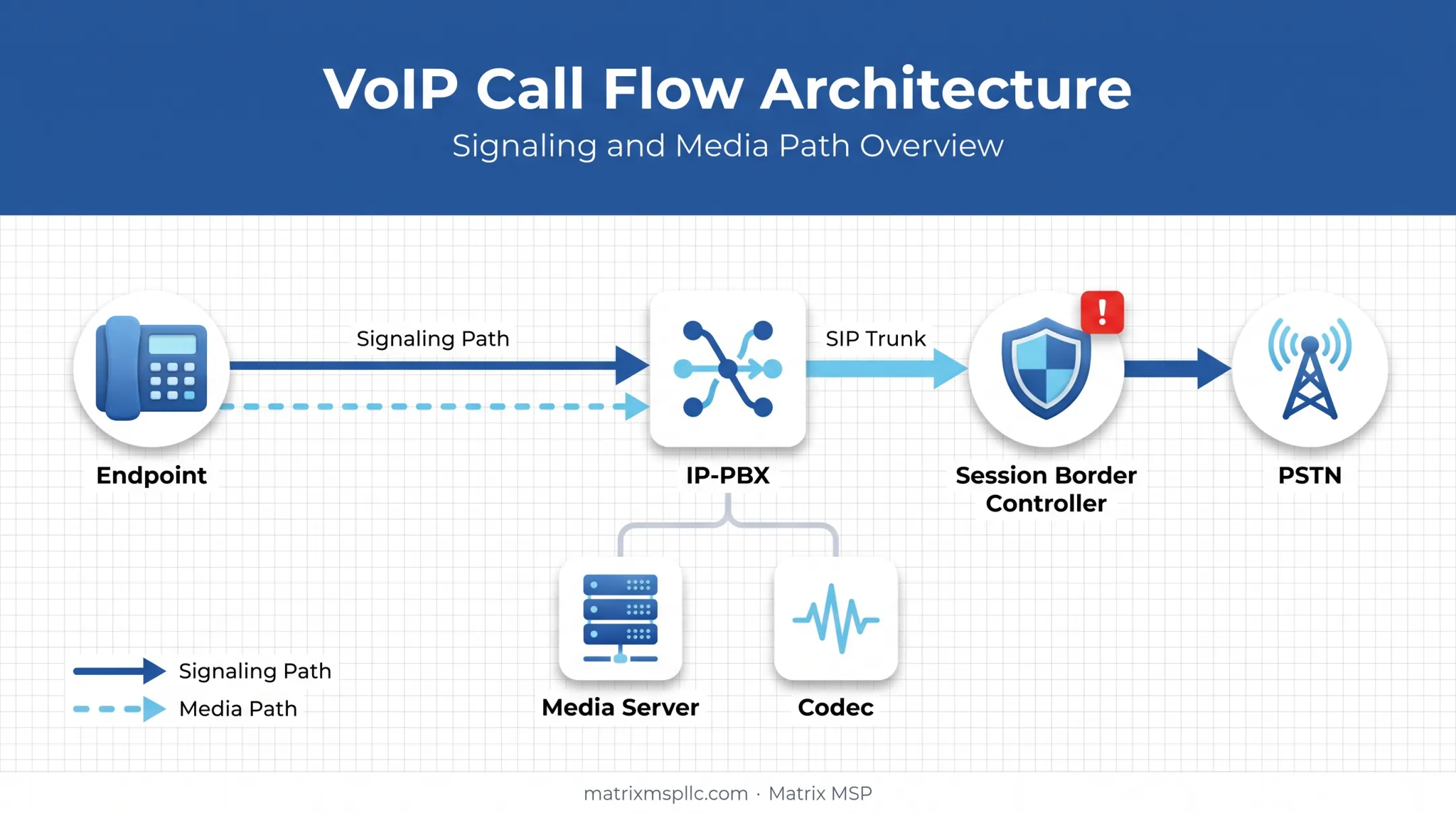

Understanding VoIP Network Architecture and Its Core Components
VoIP architecture is the combination of hardware, protocols, and network settings that turns your voice into data packets and delivers them in real time. Get any piece wrong, and the whole chain suffers.
The core building blocks:
- Session Border Controller (SBC): Edge device that connects your system to the public telephone network (PSTN), manages traffic, and secures the boundary between your internal network and outside callers.
- IP-PBX: Internal traffic controller that routes calls between extensions and connects to outside lines through SIP trunks.
- SIP (Session Initiation Protocol): Signaling protocol that sets up, manages, and ends calls—usually over UDP for speed, or TCP when reliability matters more than raw speed.
- Codecs: Encoders that convert analog voice into compressed digital data; the codec you choose drives both call quality and bandwidth use.
- Endpoints: Desk phones and softphones that handle voice conversion at each end of the call.
- Media servers: Systems that process conferencing, voicemail, IVR, and related voice services.
Every component above adds some delay to the path. Latency is how you tell whether the full architecture still delivers usable voice.
Why Latency Is the Real Benchmark
The ITU-T G.114 standard sets the industry reference point: one-way delay under 150 milliseconds is transparent to users. Between 150 and 400 ms, quality noticeably degrades. Beyond 400 ms, the connection is unsuitable for general use.
That 150 ms figure applies to the entire path, not just your local router. If your SIP registration succeeds but callers still hear delay or echo, the problem usually sits somewhere between your LAN and the carrier's edge.
Building the Network Foundation for Reliability
Before deploying any VoIP system, your network needs to handle real-time traffic without choking on it.
Bandwidth Planning
Budget roughly 80-100 Kbps per concurrent call, depending on your codec. Cisco's bandwidth tables show G.711 consuming about 87.2 Kbps per call over Ethernet, while G.729 uses closer to 31.2 Kbps.
Size the circuit from real demand, not headline speed:
- Multiply peak concurrent calls by your codec's per-call bandwidth
- Add normal data traffic on top of that voice total
- Validate against peak-hour usage—that is what breaks calls
Firewall Configuration
Three firewall settings commonly sabotage VoIP without anyone realizing it:
- SIP ALG left enabled — this "helper" feature often mangles SIP messages instead of fixing them
- UDP timeouts set too short — calls drop mid-conversation when the firewall closes the session early
- Double NAT — creates conflicting address translations that break media negotiation entirely
QoS and Voice VLANs
Quality of Service, using DSCP marking, tells your routers and switches to treat voice packets as priority traffic. Cisco recommends DSCP 46 (EF) for voice media and CS3 for signaling traffic. Pair this with a dedicated voice VLAN so phone traffic stays separate from data on shared switch ports and hits less congestion-driven jitter.

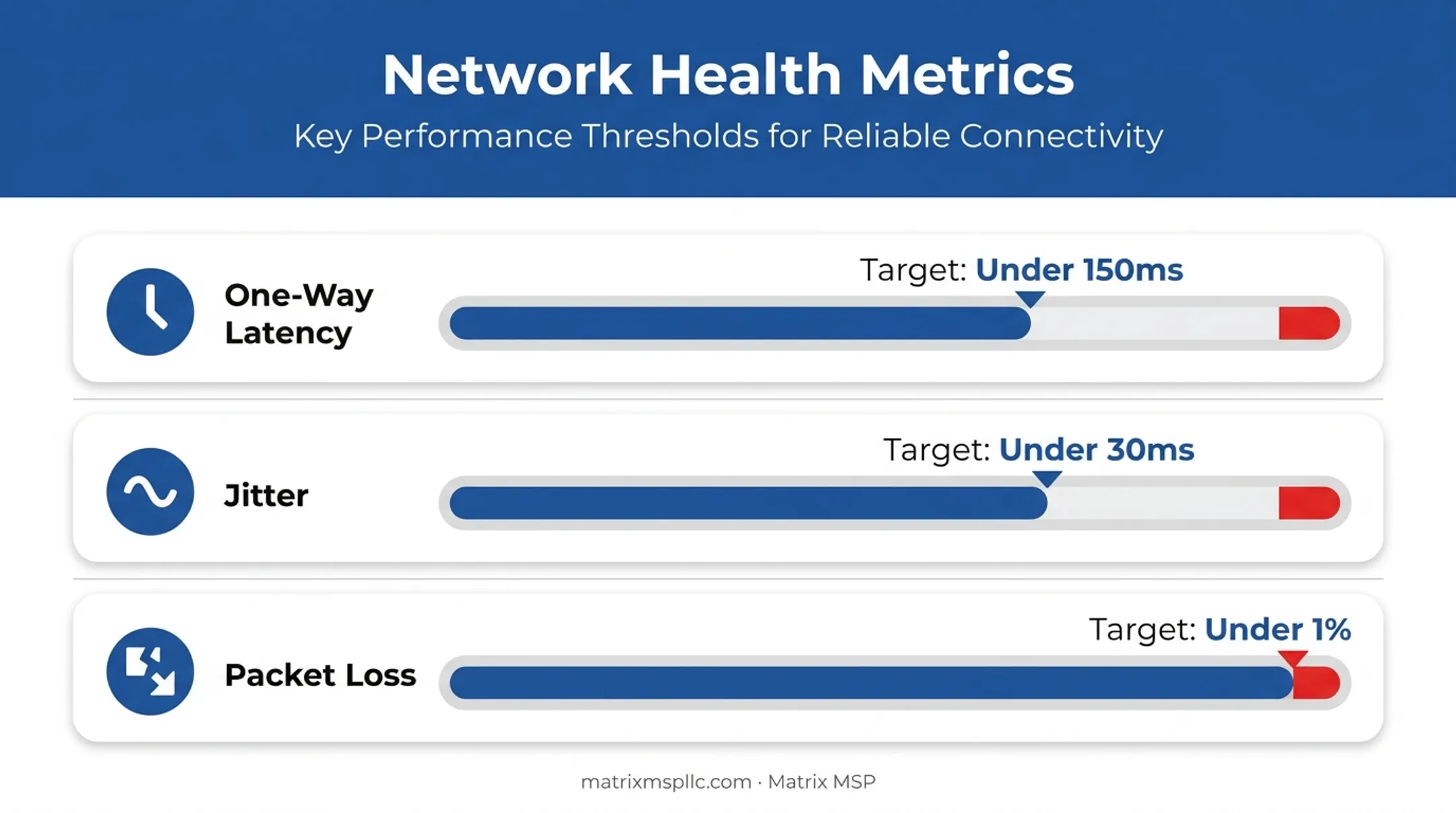

Target benchmarks for a healthy network:
| Metric | Target |
|---|---|
| One-way latency | Under 150 ms |
| Jitter | Under 30 ms |
| Packet loss | Under 1% |
Jitter and packet loss figures above are screening heuristics, not formal standards, but they are a solid starting point for spotting trouble.
Skip consumer-grade broadband for anything mission-critical. Business-grade internet with an SLA gives you guaranteed uptime and a provider who answers when something breaks.

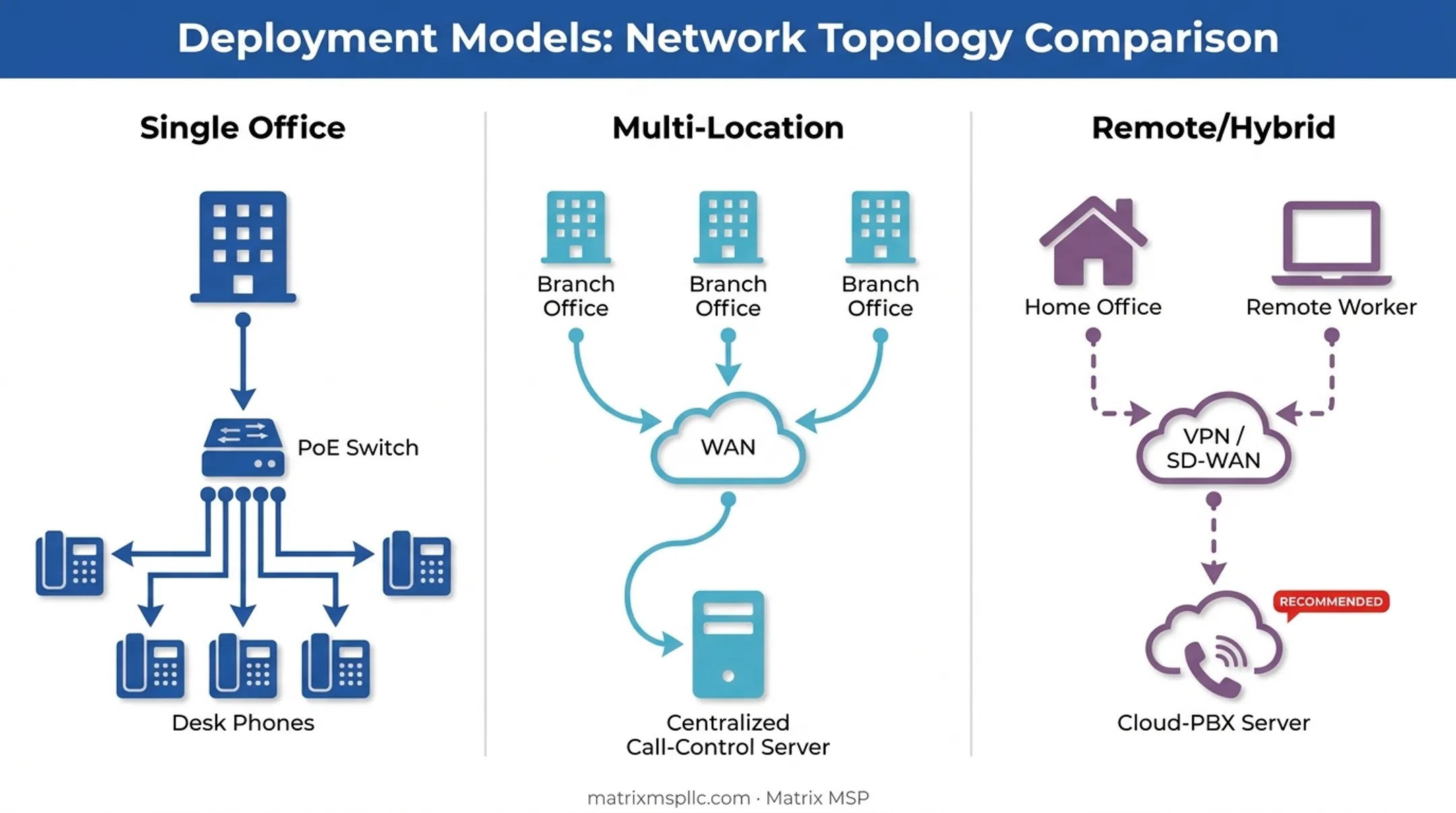

Designing Architecture by Deployment Type
Your network layout should match how your business actually operates, not a generic template.
Single Office Deployments
The simplest setup keeps voice on a contained local path:
- One ISP connection sized for peak call load
- A PoE switch powering desk phones directly
- Wired drops to each workstation
Keep call control and media traffic on the LAN. That contains the failure domain to one site and makes troubleshooting far easier.
Multi-Location Businesses
Multiple offices need consistent configuration across every site. That means:
- Run a centralized management platform for visibility across locations
- Monitor bandwidth per site to catch location-specific bottlenecks
- Backhaul sites over a QoS-enabled WAN to centralized call control
Cisco's centralized multisite model works well here, but it does create WAN dependency. If your hub site goes down, remote locations feel it.
Remote and Hybrid Workforces
Home internet quality varies widely, and you can't lock down every residential router. Plan hybrid voice around that constraint:
- Deploy softphones so employees aren't dependent on physical hardware
- Consider VPN or SD-WAN options to manage traffic paths more predictably
- Provide guidance on home router SIP ALG settings, since most employees won't know to check this
Matrix MSP's hosted VoIP model fits this pattern: employees can keep a number on shipped hardware or softphone apps, and calls can fail over to mobile devices during an outage.
Wired Connections and Network Security Best Practices

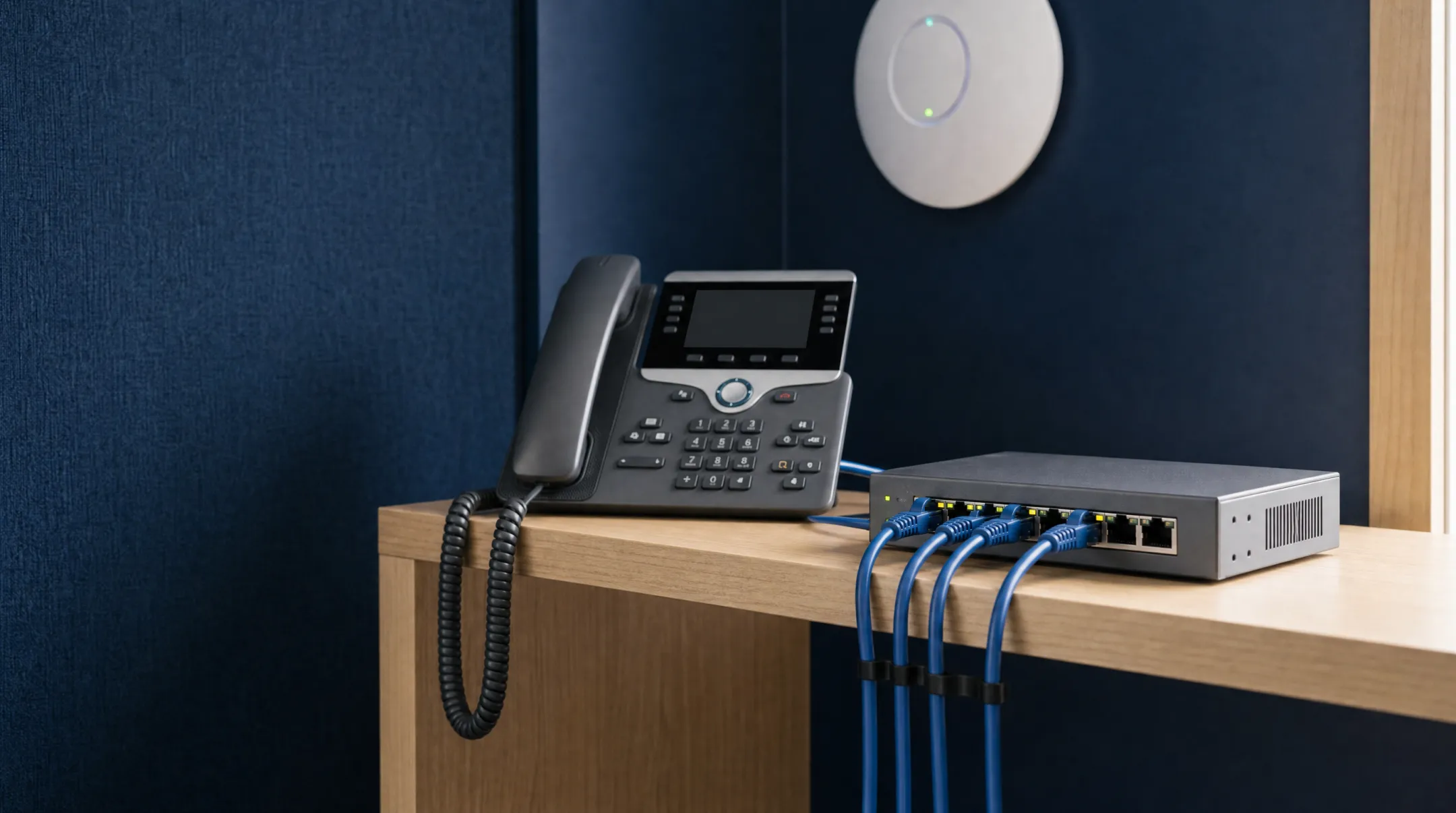

Use Ethernet for desk phones and primary workstations whenever you can. Wi-Fi and Ethernet aren't interchangeable for voice traffic.
Wireless devices share bandwidth through contention. When multiple devices compete for airtime, voice packets wait in line with everything else—and that wait shows up as jitter.
For offices that must extend Wi-Fi to some workstations:
- Change default SSIDs and disable broadcast where practical
- Apply MAC filtering to limit unknown devices on the SSID
- Use strong encryption (WPA3 where supported)
- Treat the wireless network as a voice-capable radio design, not just a data extension
Hardening the path is only half the job. Ongoing call quality monitoring catches drift after install. Tools that track RTCP-XR or similar metrics flag rising jitter, loss, or latency before users file tickets—so you fix the network while calls still sound fine.
Why Work With a Managed IT Partner for VoIP Architecture
A vendor-neutral MSP looks at your existing firewall, switch configuration, and bandwidth usage before recommending anything. That's a different approach than a VoIP vendor who wants to sell you a phone system regardless of whether your network can support it.
Matrix MSP takes that vendor-neutral approach and pairs managed network infrastructure, 24/7 monitoring, and hosted communications in one partnership. VoIP reliability isn't a one-time install. Networks keep changing, and small shifts create real call-quality problems:
- Bandwidth needs shift as your team grows
- Firewall rules can change during unrelated IT updates and quietly break SIP traffic
- QoS misconfigurations often go unnoticed until call volume spikes
Continuous monitoring catches bandwidth saturation or dropped QoS rules before they hit a client call or patient consultation. For healthcare, legal, and financial organizations across Virginia, Maryland, and DC, that proactive layer is often what separates a reliable phone system from a recurring headache.
Frequently Asked Questions
Does VoIP use UDP or TCP?
VoIP media (RTP) typically runs over UDP because it prioritizes speed over guaranteed delivery. SIP signaling can use either UDP or TCP, depending on configuration and reliability needs.
What is the basic architecture of VoIP?
Basic VoIP architecture includes endpoint devices (phones or softphones), an IP network, SIP for call signaling, an IP-PBX or SBC for call control, and PSTN integration for reaching traditional phone lines.
How much bandwidth does a VoIP network need?
Budget approximately 80-100 Kbps per concurrent call, depending on your codec, then add your normal data traffic on top. Peak-hour usage matters more than your total connection speed.
Can VoIP work reliably over Wi-Fi?
It can work, but wired connections are strongly preferred, especially in offices running many simultaneous calls. Wi-Fi introduces shared-bandwidth contention that Ethernet avoids entirely.
What is the difference between SIP trunking and hosted VoIP?
SIP trunking connects an existing on-premises PBX to the outside phone network. Hosted VoIP moves the entire phone system to the cloud, removing the need for on-site PBX hardware.
How do I know if my current network is VoIP-ready?
Get a network assessment covering bandwidth capacity, firewall settings, and QoS support before rolling out any VoIP system. An experienced IT provider can identify gaps before they become dropped calls.
